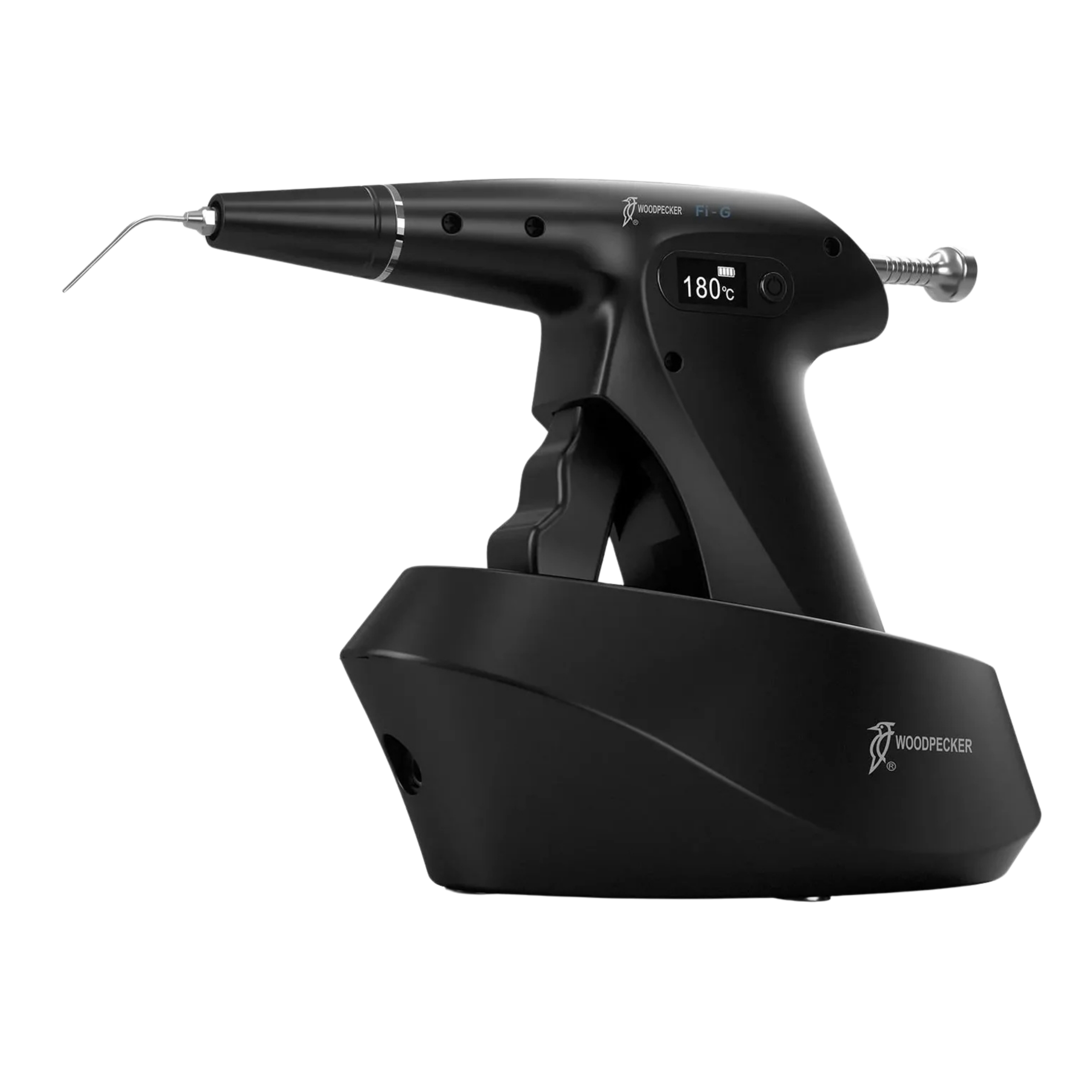

Woodpecker Endo Fi-G Cordless Gutta-Percha Obturation System
Original price was: $600.00.$399.00Current price is: $399.00.
In stock
Woodpecker Fi-G cordless gutta-percha obturation gun features 15-second heating, four temperature settings, a 360° rotatable 0.5 mm needle, and long-lasting battery power for precise endodontic backfill.
Description
The Woodpecker Fi-G Cordless Gutta-Percha Obturation Gun is a compact endodontic backfill system designed for controlled, efficient delivery of thermoplasticized gutta-percha during root canal obturation. With 15-second rapid heating, four selectable temperature settings, and a 360° rotatable 0.5 mm injection needle, the Fi-G helps clinicians access difficult areas while maintaining precise control during backfilling.
The slim injection needle is designed to reach close to the apical region for improved filling of the prepared canal, while the rotatable needle allows comfortable positioning from multiple working angles. An anti-return pushing ram mechanism helps reduce unwanted ram movement, supporting smoother material delivery and helping minimize the formation of voids or bubbles.
Powered by a 2000 mAh rechargeable battery, the cordless Fi-G provides up to approximately 1,500 operations per full charge, making it suitable for repeated clinical use without frequent charging. The reversible display also accommodates both right- and left-handed clinicians.
Features
- 15-Second Quick Heating: Rapidly reaches the selected operating temperature to reduce waiting time between procedures.
- Four Preset Temperatures: Select from 150°C, 180°C, 200°C, or 230°C to accommodate different gutta-percha materials and clinical preferences.
- 0.5 mm Injection Needle: Fine needle design allows access close to the apical portion of the canal for controlled backfilling.

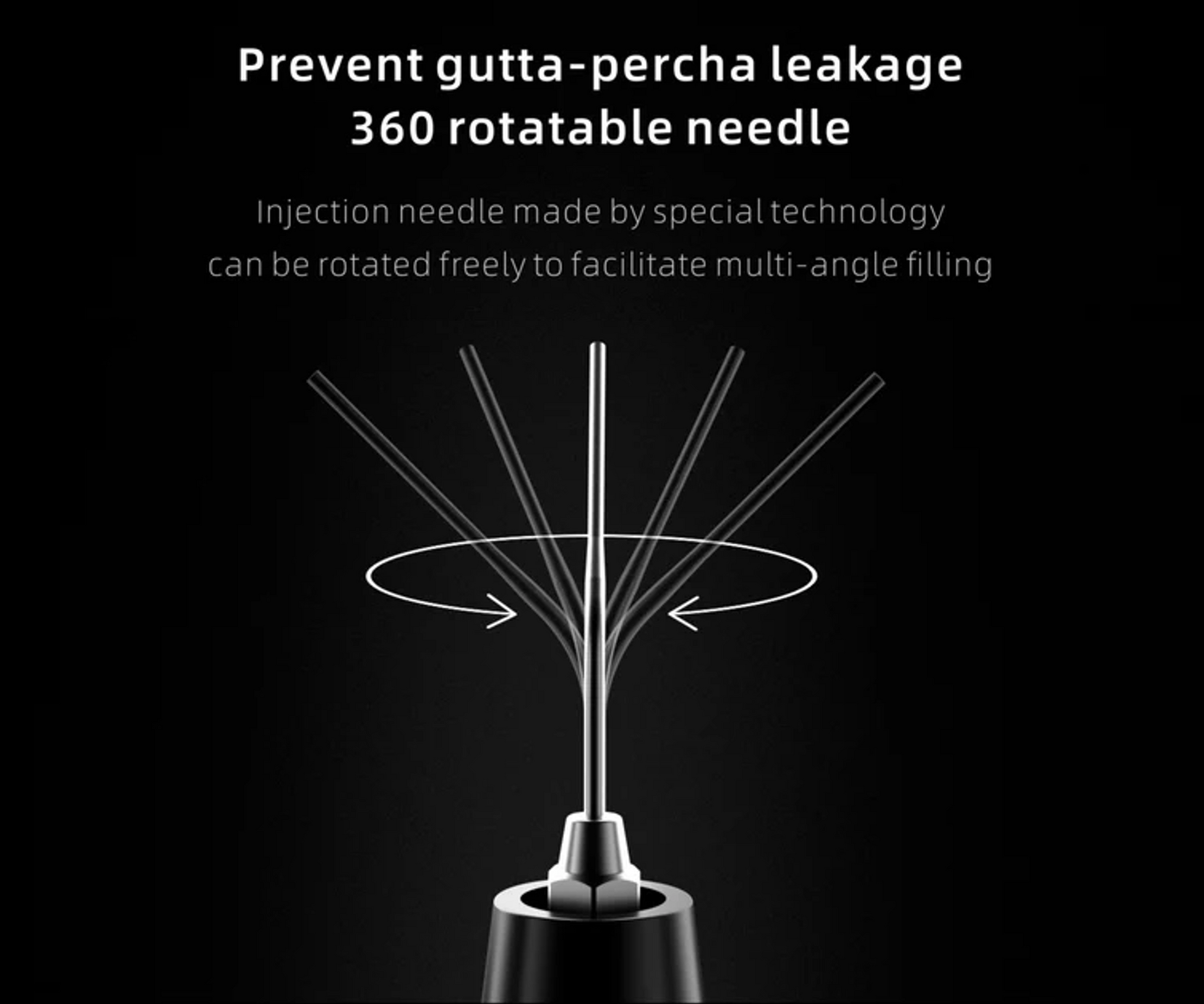

- 360° Rotatable Needle: The injection needle rotates freely, allowing the clinician to adjust the working angle for easier access to posterior and difficult-to-reach areas.

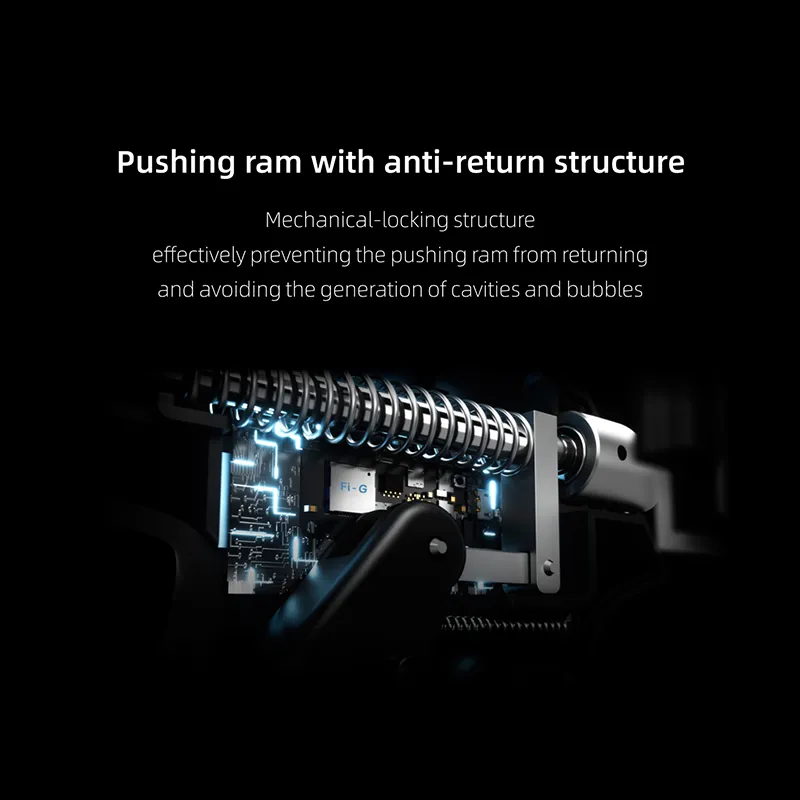

- Anti-Return Pushing Ram: Mechanical locking structure helps prevent the pushing ram from retracting during use, supporting consistent gutta-percha delivery and reducing the risk of cavities or bubbles.
- Cordless Operation: Lightweight handpiece design provides greater freedom of movement without cables interfering with the treatment area.
- High-Capacity Battery: The 2000 mAh battery provides approximately 1,500 operations per full charge.
- Dual-Direction Display: Screen orientation can accommodate both right- and left-handed operation.
- Ergonomic Design: Compact handpiece weighing approximately 170 g is designed for comfortable handling during endodontic procedures.
Specifications
| Specification | Details |
|---|---|
| Handpiece Weight | 170 g |
| Charging Base Weight | 207 g |
| Battery Capacity | 2000 mAh |
| Charging Time | Approx. 2.5 hours |
| Battery Autonomy | Approx. 1,500 operations |
| Preset Temperatures | 150°C / 180°C / 200°C / 230°C |
| Warm-Up Time | Approx. 15 seconds |
| Injection Needle Diameter | 0.5 mm |
| Needle Rotation | 360° |
Clinical Application
The Woodpecker Fi-G is intended for the backfill phase of warm gutta-percha obturation, following apical downpack and compaction. Its heated injection system allows thermoplasticized gutta-percha to be delivered progressively into the remaining canal space, helping clinicians achieve a controlled and efficient obturation workflow.
For a complete warm vertical obturation setup, the Fi-G can be paired with the Woodpecker Fi-P obturation pen, combining downpack and backfill functions in one workflow.
Warranty
One-year warranty, excluding damage caused by misuse and accidental damages.
Specification
Handpiece Weight : 170 g
Base Weight : 207 g
Battery Capacity : 2000 mAh
Recharging Time : 2.5 hours
Autonomy Duration : 1,500 operations
Preset Temperatures : 150°C / 180°C / 200°C / 230°C
Warm-up Time : 15 seconds
Packing List
- Main Unit × 1
- Charging Stand × 1
- Power Adapter × 1

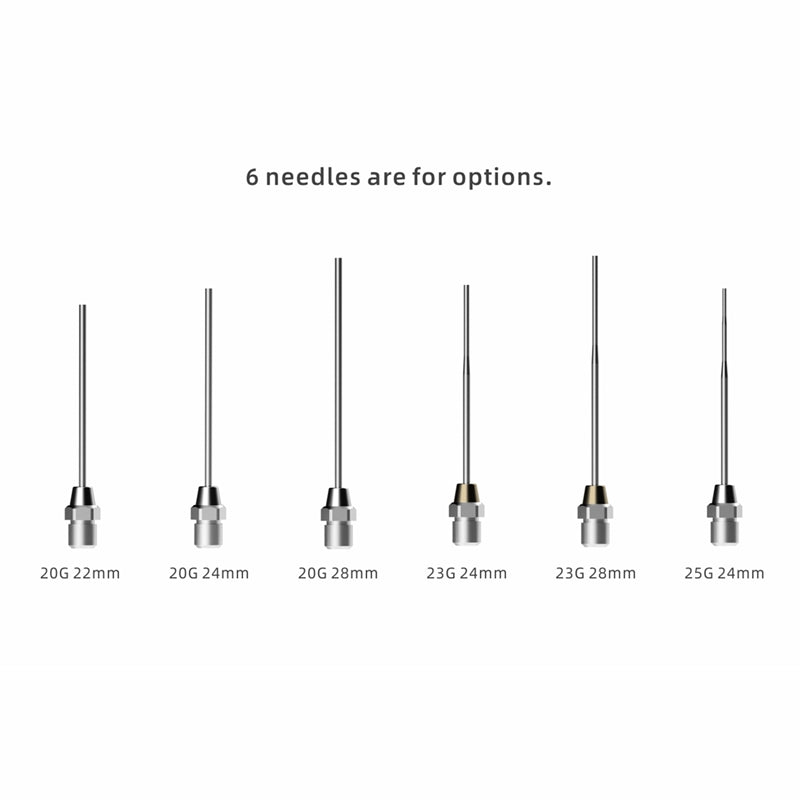

- 23G 24mm Needle × 1
- 23G 28mm Needle × 1
- 25G 24mm Needle × 2
- Heat Insulation Hood × 2
- Heat Insulation Sleeve of Needle × 1
- Pushing Ram × 1
- Brush × 2
- Wrench of Needle × 1
- Instruction Manual × 1
- Qualified Certification × 1
- Warranty Card × 1
Instructions
Root Canal Filling Procedure
The Fi-P can be used as part of a warm vertical obturation technique together with a vertical plugger and a backfill device such as the Fi-G.
1. Select an appropriate master gutta-percha cone according to the prepared root canal.
2. Choose the appropriate Fi-P heating tip. Place the tip into the canal and establish a working position approximately 4–7 mm short of the apical foramen. Mark the penetration depth and select a corresponding plugger.
3. Apply the selected sealer to the master gutta-percha cone and insert the cone into the prepared root canal.
4. Insert the Fi-P tip into the canal, activate the heating button, and cut away the excess coronal gutta-percha.
5. Reinsert the tip, activate heating, and advance through the softened gutta-percha until reaching approximately 4–7 mm from the apical foramen. Heating should generally not continue for more than approximately 3 seconds at one location. Keep the tip moving during heating to reduce prolonged heat exposure to the canal wall.
6. Release the heating button while maintaining apical pressure with the tip for approximately 10 seconds.
7. Activate the heating button for approximately 1 second, then quickly withdraw the Fi-P tip.
8. Use a vertical plugger to compact the remaining apical gutta-percha.
9. Prepare the canal for backfilling with a compatible heated gutta-percha delivery system such as the Woodpecker Fi-G.
10. Inject heated gutta-percha into the canal while gradually withdrawing the injection needle. Incremental filling is recommended rather than filling the entire remaining canal in a single injection. The manufacturer's procedure recommends increments of approximately 4 mm or less.
11. Compact each injected increment with a vertical plugger.
12. Repeat the backfilling and compaction process until the root canal filling is completed.
