Woodpecker Endo Radar Pro Brushless Endo Motor with Apex Locator

Description

The Woodpecker Endo Radar Pro is a cordless endodontic motor with integrated root canal length measurement capability, combining canal preparation and apex-location functions in one system. It can operate as a standalone endo motor, as an apex locator, or perform root canal preparation while simultaneously monitoring the position of the file tip inside the canal. (ManualsLib)

Designed around a high-performance brushless motor, wireless charging, intelligent torque control, adjustable reciprocation, and a compact 360° rotatable contra-angle, the Endo Radar Pro provides a versatile platform for contemporary root canal preparation.

Three Operating Modes

The Endo Radar Pro provides three primary modes of operation:

• Motor Alone Mode – for root canal preparation and enlargement
• Apex Locator Alone Mode – for working-length determination
• Combined Length Determination Mode – for root canal preparation while simultaneously monitoring the location of the file tip

This allows the clinician to perform length measurement separately or integrate it directly into the instrumentation workflow. (ManualsLib)

Integrated Apex Locator

The built-in apex locator provides real-time monitoring of file position during root canal treatment.

When operating in combined mode, root canal preparation and working-length monitoring can take place at the same time, reducing the need to switch between separate motor and apex-locator devices.

Intelligent Apical Control

Auto Start & Stop

The motor can automatically begin rotation when the file enters the root canal and stop when the file is removed.

Auto Apical Reverse

When the file reaches the preset apical position, the motor can automatically reverse according to the selected operating settings.

Auto Apical Stop

The system can automatically stop file movement when the defined apical position is reached.

Auto Apical Slowdown

As the file approaches the preset apical stop, the motor automatically reduces speed for greater control near the apical region.

These functions integrate motor operation with real-time root canal length monitoring.

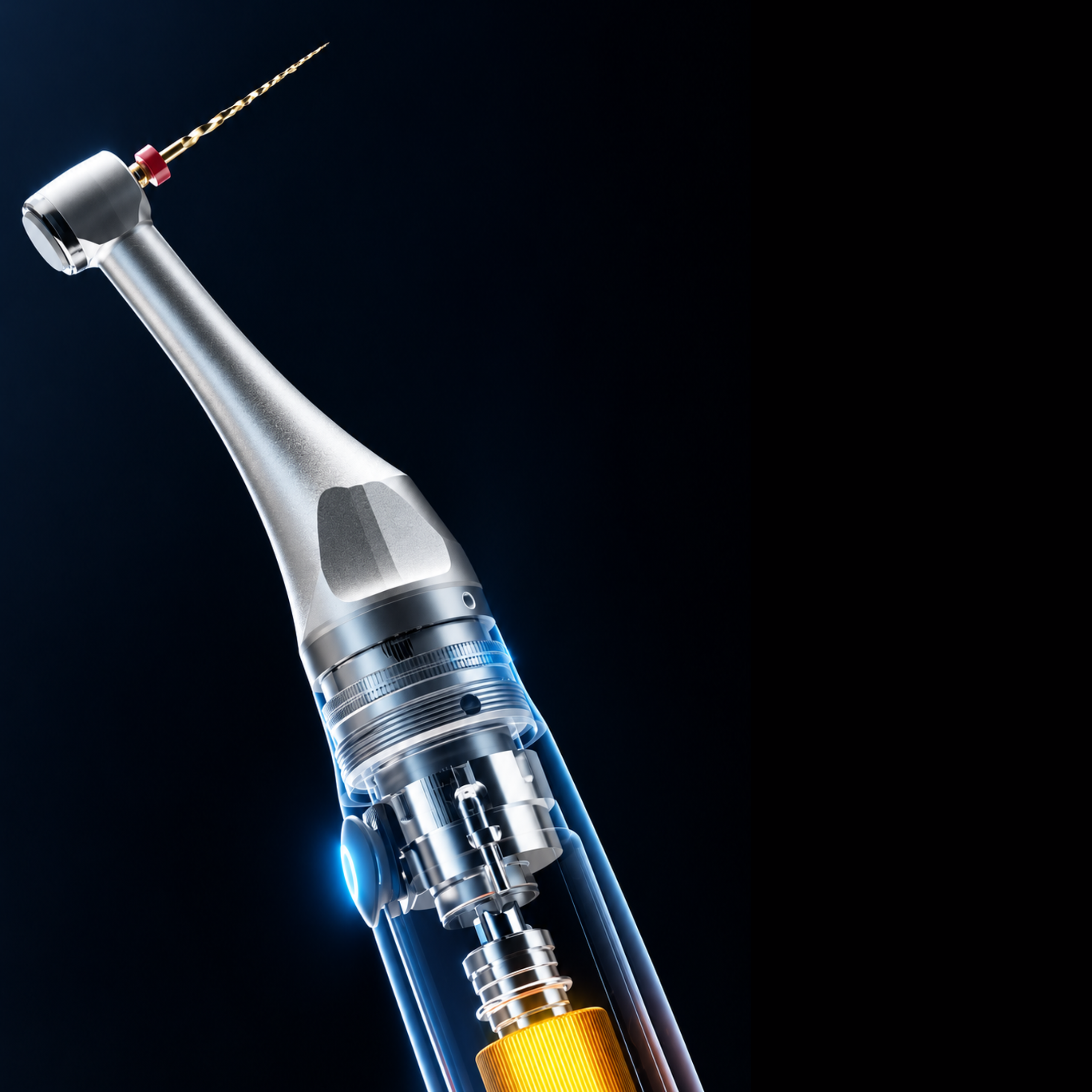

High-Performance Brushless Motor

The Endo Radar Pro uses a brushless motor designed to provide high torque, quick response, smoother rotation, reduced noise and vibration, lower wear, reduced heat generation, and extended service life compared with conventional brushed motor designs.

Motor Specifications

• Speed range: 100–2500 rpm
• Torque range: 0.4–5.0 N·cm
• Torque equivalent: 4–50 mN·m
• Gear reduction ratio: 6:1
• Contra-angle model: CA161

The 6:1 precision gear transmission supports low-speed operation while maintaining stable torque. (manualzz.com)

The product literature also describes the brushless motor as producing lower operating noise and longer service life than a conventional brush motor. (manualzz.com)

Adjustable Reciprocating Motion

The Endo Radar Pro supports adjustable reciprocating movement for compatibility with different instrumentation techniques and file systems.

• Reciprocating angles adjustable in 10° intervals
• Adjustable forward and reverse reciprocating angles
• Product literature specifies an adjustment range of up to approximately 20°–400°, depending on operating mode and version

Fine control of the rotational angle can help reduce excessive torsional loading on the instrument while allowing the clinician to customize file movement for different preparation techniques.

ATR – Adaptive Torque Reverse Mode

The Endo Radar Pro incorporates ATR functionality.

When the preset torque threshold is reached, the motor can change the movement of the file and enter reciprocating motion according to the programmed angle.

Instead of relying only on conventional continuous rotation and torque reversal, ATR allows file movement to respond dynamically when resistance increases.

This is designed to:

• Reduce excessive stress on the file
• Help decrease the risk of instrument separation
• Improve control when the instrument encounters increased canal resistance
• Allow more controlled progression during canal preparation

11 Built-In / User-Defined Programs

The Endo Radar Pro includes 11 programmable file-system modes intended to accommodate commonly used endodontic instrumentation systems.

Product information describes these as:

• 8 customizable rotary programs
• 3 customizable reciprocating programs

This allows the clinician to configure operating parameters according to the selected file system and clinical technique. (SoniDent)

Parameters can include settings such as:

• Speed
• Torque
• Rotation direction
• Reciprocation behavior
• Forward angle
• Reverse angle
• Apical response

Broad NiTi File-System Compatibility

The programmable operating modes allow the Endo Radar Pro to be configured for a variety of mainstream NiTi rotary and reciprocating file systems rather than limiting the motor to one proprietary file sequence.

360° Rotatable Contra-Angle

The contra-angle can rotate through 360°, allowing the clinician to reposition the head without removing the contra-angle from the handpiece.

This provides greater flexibility when accessing different teeth and working from different treatment positions. (ManualsLib)

Super-Mini Contra-Angle

The compact contra-angle head is designed to improve visibility and access to the treatment area.

Head Dimensions

• Diameter: approximately 8 mm
• Height: approximately 9.7 mm

The reduced dimensions can be particularly useful when working in areas where access and visibility are limited.

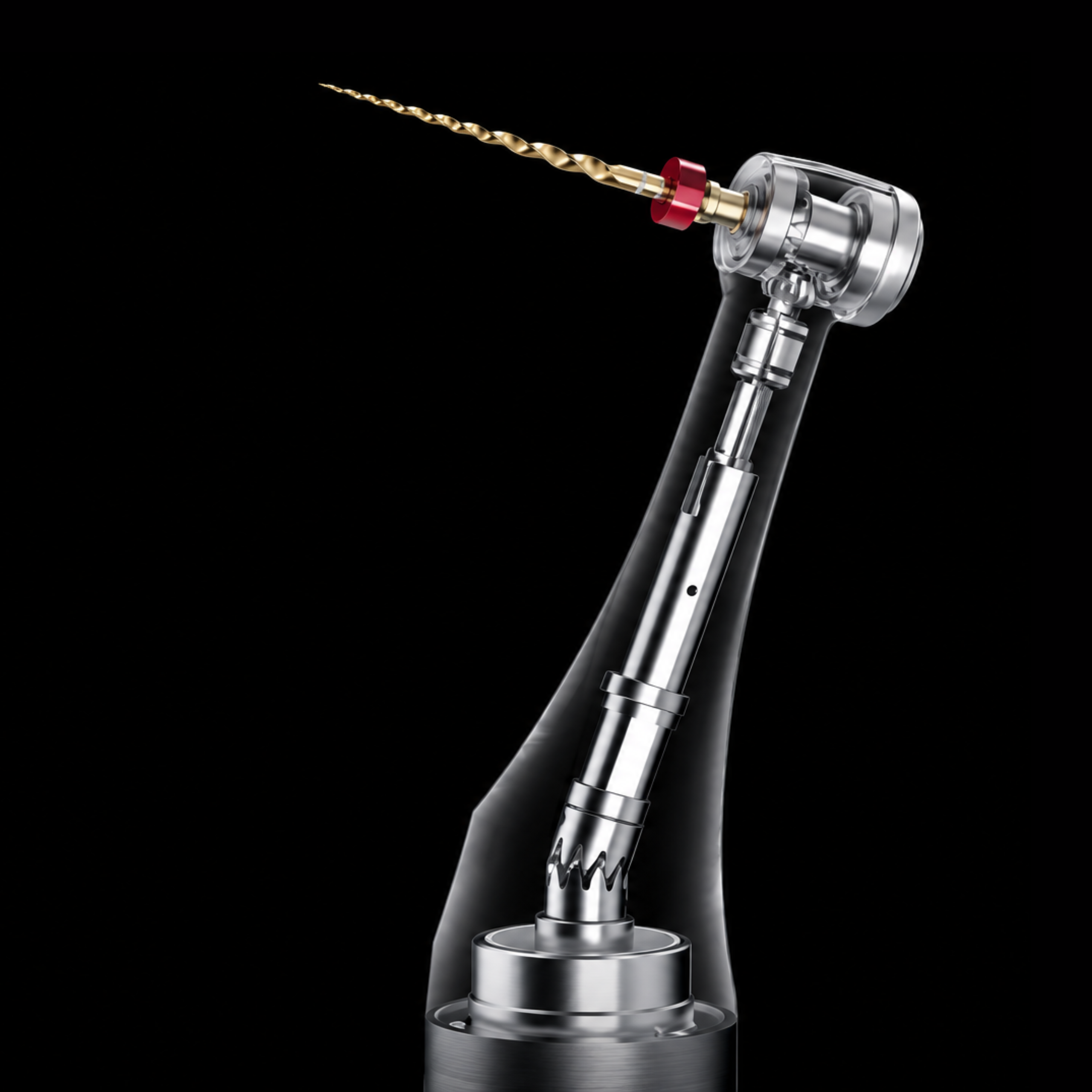

Precision 6:1 Gear Transmission

The contra-angle uses a 6:1 reduction ratio with internal precision gear transmission.

This configuration allows the motor to provide controlled low-speed rotation while maintaining the torque required for endodontic instrumentation. (manualzz.com)

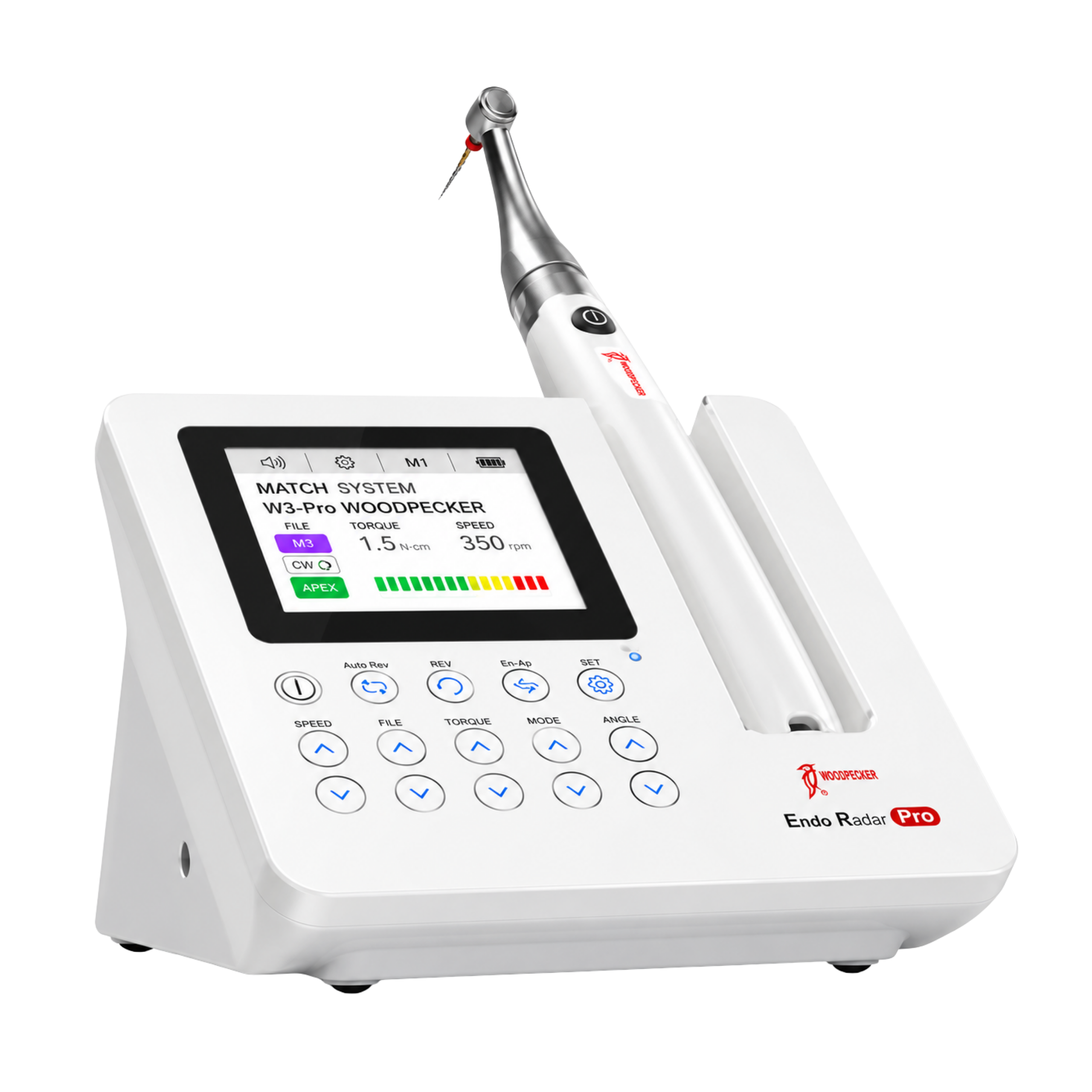

HD LCD Display

The main control unit features a large HD LCD display that provides visual information for motor and apex-locator operation.

Displayed information can include operating parameters and root canal length information, allowing the clinician to monitor treatment status during instrumentation.

Touch-Control Interface

The Endo Radar Pro features a touch-sensitive control panel designed for straightforward operation and easier surface cleaning.

The illuminated interface helps make individual controls easier to identify during clinical use.

Cordless Handpiece

The motor handpiece is cordless, allowing free movement around the treatment area without a motor cable extending between the handpiece and base.

This can improve maneuverability during treatment and simplify positioning around the dental chair.

Wireless Charging

The Endo Radar Pro incorporates wireless charging between the handpiece and base.

When the handpiece is returned to the main unit, it can recharge from the base battery without requiring the clinician to connect a charging cable directly to the motor handpiece.

Dual-Battery System

The device contains rechargeable lithium batteries in both the handpiece and base.

Motor Handpiece Battery

• 3.7 V
• 1200 mAh lithium battery

Base Battery

• 11.1 V
• 2600 mAh lithium battery

The high-capacity battery in the base supports the wireless charging system and allows the cordless handpiece to be recharged when placed in the main unit. (ManualsLib)

Power Adapter Specifications

• Input: 100–240 V AC
• Frequency: 50/60 Hz
• Input current: 800 mA
• Output: DC 15 V / 1.6 A

The wide input-voltage range allows the supplied power system to accommodate common electrical standards in different regions. (manualzz.com)

Low Noise and Low Vibration

The brushless motor is designed for smoother rotation with reduced noise and vibration.

The manufacturer’s promotional material compares the Endo Radar Pro favorably with conventional brushed endodontic motors at several common operating speeds.

Lower vibration and smoother rotation can contribute to more controlled handpiece operation during instrumentation.

Example Root Canal Preparation Sequence

The manufacturer’s material provides the W3-Pro file system as one example of how the programmable motor can be incorporated into a complete root canal preparation workflow.

1. Initial Negotiation

Use a #10 stainless-steel K-file to probe and negotiate the root canal and perform a preliminary determination of working length.

2. Coronal Pre-Enlargement

Use the 17/.12 cavity access file to pre-enlarge the coronal one-third of the root canal and enlarge the canal entrance.

3. Working-Length Determination

Determine the final working length and confirm root canal patency.

4. Initial Glide Path

Use the 12/.vt glide-path file to negotiate and enlarge the root canal pathway.

5. Glide-Path Enlargement

Use the 16/.vt glide-path file to further negotiate and enlarge the root canal pathway.

6. Initial Shaping

Use the 18/.05 file to negotiate the canal to working length using controlled brushing and pecking movements.

7. Canal Shaping

Use the 25/.06 file to shape the root canal to working length using brushing and pecking movements.

8. Additional Enlargement

Use the 35/.04 file to shape the canal to working length as clinically indicated.

The manufacturer’s suggested technique uses controlled brushing movements to enlarge lateral canal space and controlled pecking movements during progression toward working length.

Included Components

According to available Endo Radar Pro product documentation and package listings, the system may include:

• Main Endo Radar Pro base unit with integrated apex locator
• Cordless motor handpiece
• 6:1 contra-angle
• Power adapter
• USB cable
• Measuring wire
• File clips
• Lip hooks
• Touch probes
• Protective silicone covers
• O-rings
• Lubricator
• Instruction manual

Technical Specifications

Specification	Endo Radar Pro
Device Type	Cordless endodontic motor with integrated apex locator
Operating Modes	Motor / Apex Locator / Combined
Motor Type	Brushless
Speed Range	100–2500 rpm
Torque Range	0.4–5.0 N·cm
Gear Ratio	6:1
Contra-Angle Model	CA161
Contra-Angle Rotation	360°
Contra-Angle Head Diameter	Approx. 8 mm
Contra-Angle Head Height	Approx. 9.7 mm
Reciprocating Adjustment	10° increments
Reciprocating Range	Approx. 20°–400°, mode/version dependent
Programs	11
Rotary Programs	8 customizable
Reciprocating Programs	3 customizable
Apex Control	Auto Slowdown / Stop / Reverse
Auto Start/Stop	Yes
ATR Mode	Yes
Display	HD LCD
Handpiece Battery	3.7 V / 1200 mAh Lithium
Base Battery	11.1 V / 2600 mAh Lithium
Charging	Wireless handpiece charging
Adapter Input	100–240 V AC, 50/60 Hz, 800 mA
Adapter Output	DC 15 V / 1.6 A

The main technical values above are also documented in the Endo Radar Pro instruction manual. (ManualsLib)

Key Features

• Cordless endodontic motor with integrated apex locator
• Root canal preparation with simultaneous working-length monitoring
• Dedicated motor-only mode
• Dedicated apex-locator mode
• Combined motor and apex-locator mode
• High-performance brushless motor
• 100–2500 rpm operating range
• 0.4–5.0 N·cm torque range
• Precision 6:1 reduction contra-angle
• ATR adaptive torque response
• Adjustable reciprocating motion
• Reciprocation adjustable in 10° increments
• Auto start
• Auto stop
• Auto apical slowdown
• Auto apical stop
• Auto apical reverse
• 11 programmable modes
• 8 customizable rotary programs
• 3 customizable reciprocating programs
• Compatibility with multiple NiTi file systems
• 360° rotatable contra-angle
• Super-mini contra-angle head
• Approx. 8 mm contra-angle head diameter
• Approx. 9.7 mm contra-angle head height
• HD LCD screen
• Touch-control interface
• Cordless motor handpiece
• Wireless charging
• 1200 mAh handpiece battery
• 2600 mAh base battery
• Wide-range 100–240 V power adapter
• Smooth, low-vibration motor operation
• Reduced operating noise associated with brushless motor technology
• Root canal measurement accessories included

Intended for use by qualified dental professionals for endodontic treatment.
